Login with Azure AD

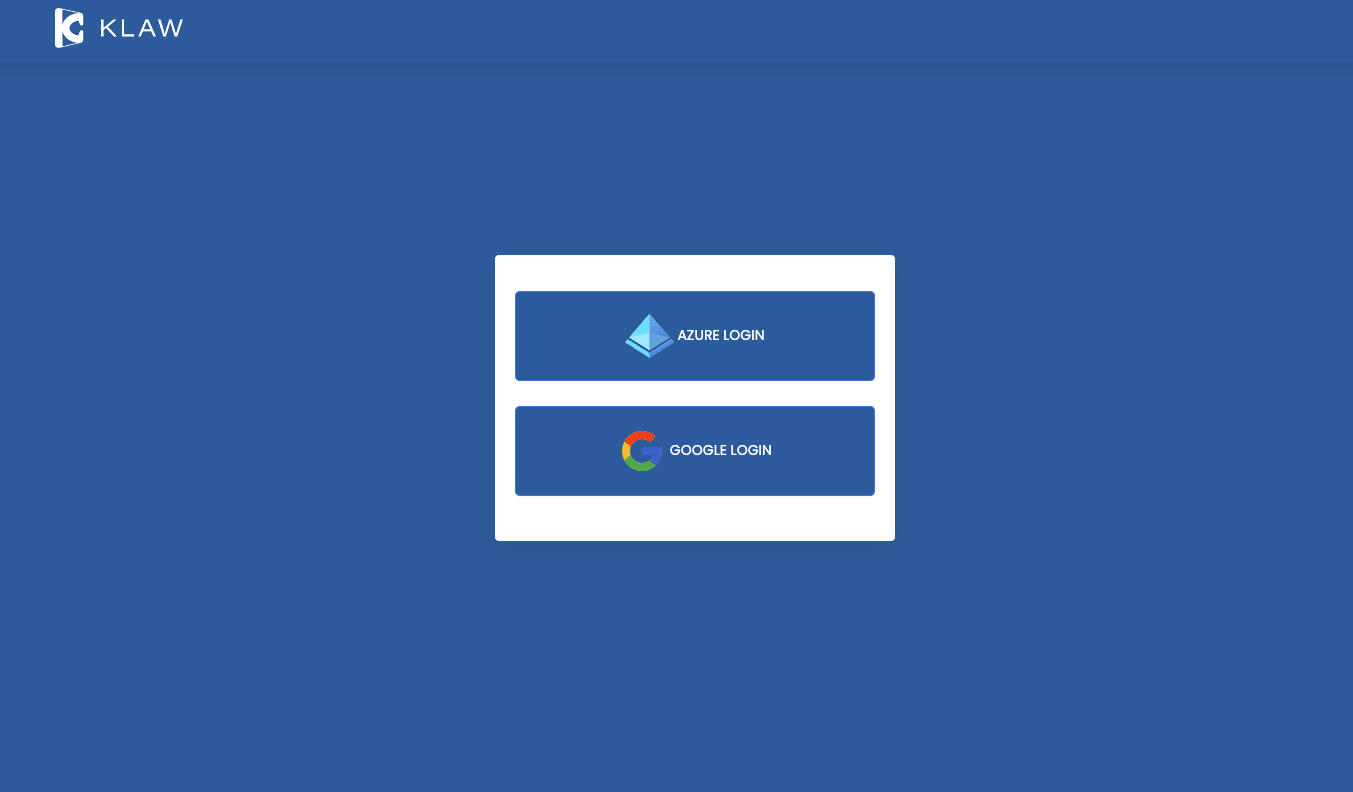

You can log in to Klaw with your credentials configured in the Azure Active Directory. On the login screen, you are prompted with a login option for Azure AD. After clicking on the login button, you are provided with an Azure pop-up window with options to provide your credentials or select an Azure account.

Before using Azure AD to log in with Klaw, you need to make the following configurations in the application.properties file in Klaw Core module to enable Azure AD.

  1. Make sure Klaw is running in a secure mode. You will find the following configuration: server.ssl.key-store.

  2. Configure the authentication type by setting the value to ad in the following property: klaw.login.authentication.type=ad

  3. Enable SSO by setting the value to true in the following property: klaw.enable.sso=true

  4. To enable Azure AD-based authentication, uncomment the following properties and provide the appropriate values for ClientId, Client secret, and Tenant Id:

    Uncomment the below OAuth2 configuration to

    enable Azure AD based authentication #spring.security.oauth2.client.registration.azure.client-id= #spring.security.oauth2.client.registration.azure.client-secret= #spring.security.oauth2.client.registration.azure.redirect-uri=https://localhost:9097/login/oauth2/code/ #spring.security.oauth2.client.registration.azure.provider=azure-active-directory #spring.security.oauth2.client.registration.azure.scope=openid, profile, email #spring.security.oauth2.client.provider.azure-active-directory.issuer-uri=https://login.microsoftonline.com/{tenantid}/v2.0

  5. Configure an existing SUPERADMIN user from AD to approve new users in the following property for username:

    klaw.superadmin.default.username=superadmin@company.com

  6. If you have already signed up with Azure AD, you will be redirected to the Klaw home page.


    Enter your credentials in the Azure login window.

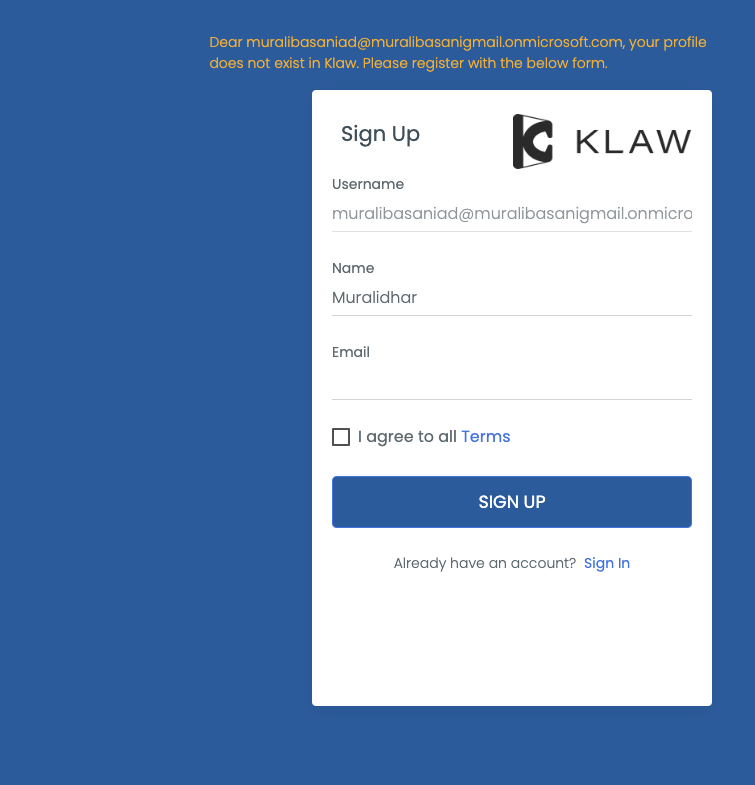

  7. If this is your first time logging in, you will be presented with a signup form to fill in. On submission, the Klaw Administrator will approve or decline your request.
